Compiler Architecture

Compiler Architecture

The Vox compiler follows a modular pipeline architecture with conceptual stages. The current implementation is consolidated under crates/vox-compiler/src/, where each stage is represented by explicit modules.

Current implementation note: the practical pipeline is currently consolidated under crates/vox-compiler/src/ for lexer, parser, AST, HIR, typecheck, and emitters. This document keeps conceptual stage boundaries while implementation modules may live in one crate.

---

Pipeline Overview

Source Code (.vox)
    │
    ▼
┌────────────────┐
│     Lexer      │  Tokenization (logos)
└──────┬─────────┘
       │ Vec<Token>
       ▼
┌────────────────┐
│     Parser     │  Recursive descent parser → AST Module
└──────┬─────────┘
       │ Module (AST root)
       ▼
┌────────────────┐
│      AST       │  Strongly-typed AST wrappers
└──────┬─────────┘
       │ Module (Decl, Expr, Stmt, Pattern)
       ▼
┌────────────────┐
│      HIR       │  Desugaring + name resolution + dead code detection
└──────┬─────────┘
       │ HirModule
       ▼
┌────────────────┐
│    Typeck      │  Bidirectional type checking + HM inference
└──────┬─────────┘
       │ Typed HIR + Vec<Diagnostic>
       ▼
┌────────────────┐
│     Web IR     │  HIR→WebIR lower + validate
└──────┬─────────┘
       │ WebIrModule
       ▼
┌────────────────┐
│  App Contract  │  HIR→AppContract (HTTP/RPC/server config)
└──────┬─────────┘
       │ AppContractModule
       ▼
┌────────────────┐
│ Runtime Proj   │  HIR→RuntimeProjection (DB/task capability hints)
└──────┬─────────┘
       │ RuntimeProjectionModule
       ▼
┌──────────────────┬─────────────────────┐
│ vox-codegen-rust │  vox-codegen-ts     │
│  (quote! → .rs)  │  (string → .ts/tsx) │
└──────────────────┴─────────────────────┘

Current path note:

• codegen_ts is still the production TS emitter path.
• VOX_WEBIR_VALIDATE defaults on (WebIR lower/validate gate); set =0 / false / no / off to skip.
• app_contract::project_app_contract is the SSOT for route/RPC/server-config codegen inputs (via projection_bundle in emit paths).
• runtime_projection::project_runtime_from_hir is the SSOT for orchestration-facing DB capability projection (also bundled).
• Reactive view: uses the Web IR TSX bridge when validation is clean; VOX_WEBIR_EMIT_REACTIVE_VIEWS was removed — there is no legacy-only emit path (see reactive.rs).

---

ML Training Pipeline

Vox has a native ML training loop powered by Burn (a pure-Rust deep learning framework):

docs/src/*.md + examples/*.vox
    │
    ▼
vox mens corpus extract   # produces validated.jsonl
    │
    ▼
vox mens corpus pairs     # produces train.jsonl (instruction-response pairs)
    │
    ▼
vox mens train            # native Burn / HF path (default CLI features)
    │
    ▼
mens/runs/v1/model_final.bin

The training loop is defined in crates/vox-cli/src/training/native.rs.

---

Stage Details

1. Lexer (vox-compiler::lexer)

Purpose: Converts source text into a flat stream of tokens.

Implementation: Uses the logos crate for high-performance, zero-copy tokenization.

Output: Vec<Token> — each token carries its kind and span.

---

2. Parser (vox-compiler::parser)

Purpose: Transforms a token stream into an AST module.

Implementation: A hand-written recursive descent parser producing ast::decl::Module. The parser is resilient to errors, meaning it continues parsing after encountering invalid syntax — this is critical for LSP support, where the user is actively typing.

Key features:

• Error recovery with synchronization points
• Trailing comma support in parameter lists
• Duplicate parameter name detection
• Indentation-aware formatting (indent.rs)

See crates/vox-compiler/src/parser/descent/mod.rs for the implementation entrypoint.

Output: Module (AST root) with source spans on declarations and expressions.

---

3. AST (vox-compiler::ast)

Purpose: Strongly-typed wrappers around the untyped CST nodes.

See crates/vox-ast/src/ for the node hierarchy.

---

6. Code Generation

Rust Codegen (vox-compiler::codegen_rust)

Emits Rust source using the quote! macro. Each decorator maps to specific Rust constructs:

Vox	Generated Rust
query/mutation/server fn	Axum handler + route registration
table type	Struct + SQLite schema
@test fn	#[test] function
@deprecated	#[deprecated] attribute
actor	Tokio task + mpsc mailbox
workflow	Plain async function today; interpreted runtime provides partial durable step recording

TypeScript Codegen (vox-compiler::codegen_ts)

Emits TypeScript/TSX in modular files:

Module	Output
jsx.rs	React JSX components
component.rs	Component declarations and hooks
activity.rs	Activity/workflow client wrappers
emitter.rs	TanStack Router trees, optional server fns, islands metadata
adt.rs	TypeScript discriminated union types

Normative strategy for reducing frontend emitter complexity while preserving React interop: ADR 012 — Internal web IR strategy. Detailed implementation sequencing and weighted task quotas: Internal Web IR implementation blueprint. Ordered file-by-file execution map: WebIR operations catalog. Canonical current-vs-target representation mapping: Internal Web IR side-by-side schema. Quantified K-complexity delta for the canonical worked app: WebIR K-complexity quantification. Reproducible per-token-class computation: WebIR K-metric appendix.

---

Supporting Crates

Crate	Purpose
vox-cli	vox command-line entry point — see ref-cli.md for the implemented subcommand set
vox-lsp	Language Server Protocol implementation
vox-actor-runtime	Tokio/Axum runtime: actors, scheduler, subscriptions, storage
vox-package	Package manager: CAS store, dependency resolution, caching
vox-db	Database abstraction layer
vox-gamify	Gamification system
vox-orchestrator	Multi-agent orchestration
vox-code-audit	AI anti-pattern detector
vox-tensor	Native ML tensors via Burn 0.19 (Wgpu/NdArray backends)
vox-eval	Automated evaluation of training data quality
vox-doc-pipeline	Rust-native doc extraction + SUMMARY.md generation
vox-integration-tests	End-to-end pipeline tests

---

Adding a Language Feature

The full checklist for adding a new language construct:

1. Lexer — Add tokens to crates/vox-compiler/src/lexer/token.rs
2. Parser — Add grammar rules in crates/vox-compiler/src/parser/descent/
3. AST — Add node types in crates/vox-ast/src/
4. HIR — Map AST → HIR in crates/vox-compiler/src/hir/lower/
5. Type Check — Add inference rules in crates/vox-compiler/src/typeck/
6. WebIR — Add/update lowering + validation semantics in crates/vox-codegen/src/web_ir/ when the feature affects web-facing behavior
7. Codegen — Emit code in both crates/vox-compiler/src/codegen_rust/ and crates/vox-codegen-ts/src/
8. Test — Add integration coverage in vox-integration-tests/tests/ and WebIR/parity coverage where applicable
9. Docs — Add frontmatter + code example in docs/src/
10. Training — Run vox mens corpus extract to include the new construct in ML data

---

The five pillars

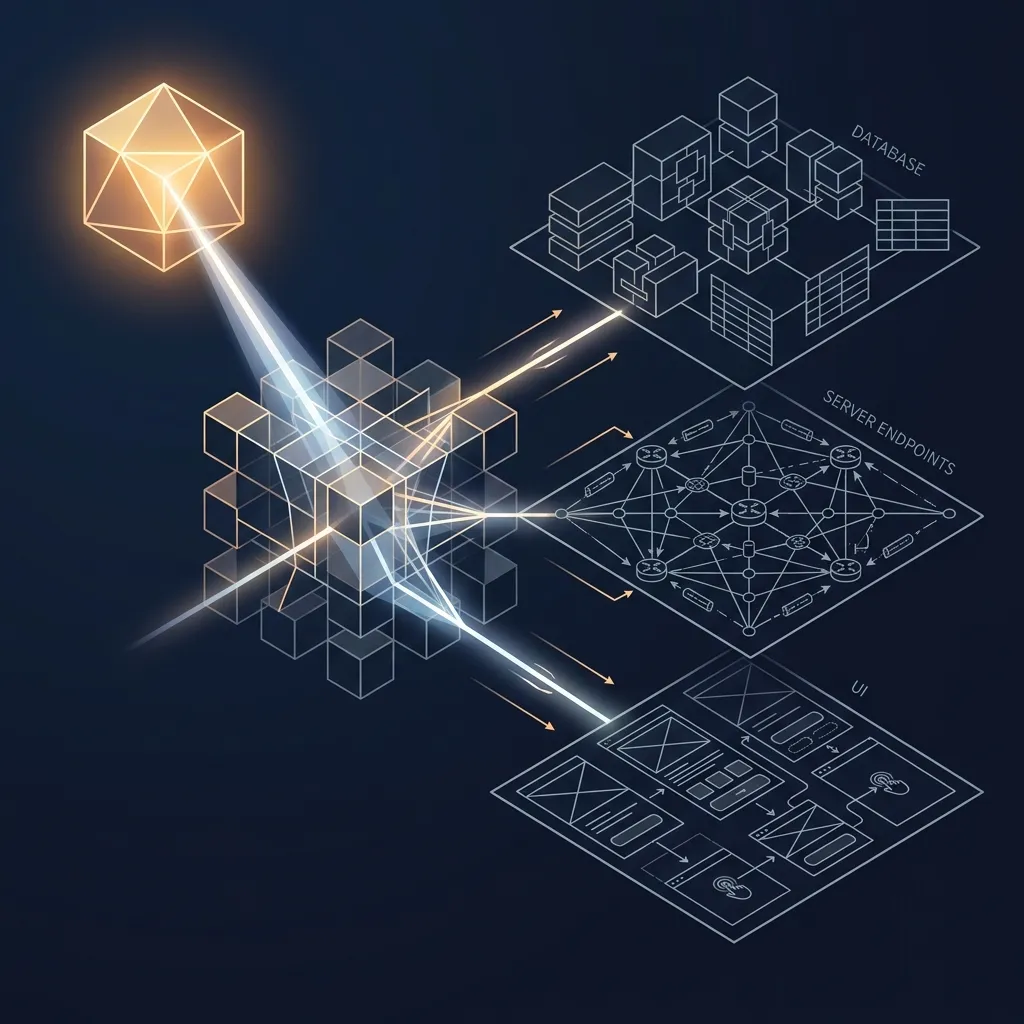

Unified Compilation from a Single Source
Vox uses a single .vox file to derive the entire technology stack. The compiler uses this unified source of truth to generate synchronized database schemas, API servers, and reactive UI components simultaneously.

Pillar 1: One source of truth

table Task {
    title: str
    done:  bool
    owner: str
}

The declaration is the schema, the wire format, and the typed client. index Task.by_owner on (owner) lives next to it. Migrations come from the diff against the previous schema.

→ table reference · migration guide

Pillar 2: Errors in the type system

query recent_tasks() to list[Task] {
    return db.Task.where({ done: false }).limit(10).unwrap()
}

mutation add_task(title: str, owner: str) to Result[Id[Task]] {
    if title is "" {
        return Error("title required")
    }

    return db.Task.insert({
        title: title,
        done: false,
        owner: owner
    })
}

A Result[T] caller must handle both arms — no exceptions, no null, no implicit propagation. The compiler refuses to build code that drops Error. vox-lsp surfaces the same diagnostics live in the editor.

query, mutation, and server are the three endpoint kinds. They replace the previous @endpoint(kind: …) form (deprecated 2026-05-23; auto-migrated by vox fmt).

→ decorator reference

Pillar 3: One file → running deployment

component TaskPage(tasks: list[Task]) {
    view: column() {
        tasks.map(fn(t) {
            row() {
                text() { t.title }
            }
        })
    }
}

routes {
    "/" to TaskPage
}

vox build emits React/TSX components, a generated vox-client.ts RPC bridge, and — via vox-deploy-codegen — Dockerfile, Compose, Kubernetes, Fly, Coolify, and systemd targets, all derived from the same module graph. External React, TanStack, or mobile apps can import the emitted components or call the endpoints over the bridge.

→ external interop plan · deployment

Pillar 4: Agents, MCP, and the orchestrator

tool and resource expose typed functions to any Model Context Protocol client. The tool description, parameter schema, and return type are all derived from the function signature.

tool "Process a checkout for the given amount" checkout(amount: int) to Result[str] {
    if amount > 1000 {
        return Error("amount too large")
    }
    return Ok("tx_123")
}

resource "vox://tasks/open" "Open tasks right now" open_tasks_resource() to list[Task] {
    return db.Task.where({ done: false }).limit(10).unwrap()
}

vox-orchestrator routes work to agents by file affinity and ten policy modules (tier cascade, plan-mode trigger, risk matrix, budget gate, circuit breaker, calibration, …). Capabilities are extensible: dozens of first-party plugins (compiler, git, memory, RAG, testing, Mens-Candle-CUDA/Metal, WASM and OCI runtimes) load through vox-plugin-host behind a stable ABI.

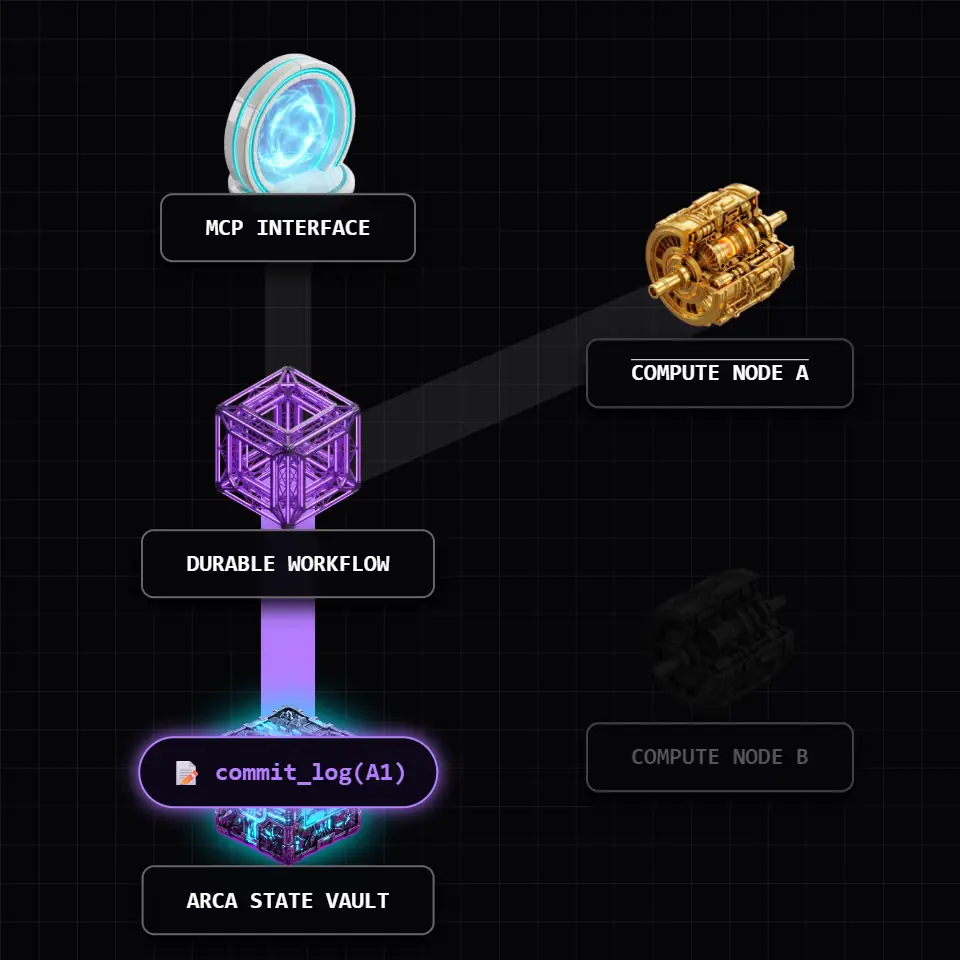

Durable execution

workflow and activity are keywords, not a library. The runtime in vox-workflow-runtime checkpoints every activity result to a per-run journal (ADR-019, v1 contract). A crash mid-run resumes on restart with the completed activities replayed from the journal; only the remaining steps re-execute. @scheduled functions run on a persistent scheduler loop with crash-safe state. Supported subset documented in ADR-021; completion ADR is ADR-041. The supported subset ships today; unrestricted control-flow replay remains future work.

→ orchestration policy research · vox-skills · ADR-041: durable functions completion

Pillar 5: Built for LLM authorship

The shape of the four pillars above is downstream of one decision: design the language after the model. Three subsystems make that concrete.

• Grammar-constrained decoding. vox-constrained-gen is an Earley/PDA decoder with a deadlock watchdog. Token-stream constraint, not post-hoc validation — invalid Vox cannot be sampled.
• Measurable detectors. Rules live in rules.v1.yaml with a JSON Schema and an F1 bench scorer over fixture corpora. Stub, hollow-fn, victory-claim, AI-laziness, secret, magic-value, deprecated-symbol, and effect-system rules are all scored against ground truth, not vibes.
• Local training. Vox is new; mainstream languages saturate the public training corpus, Vox doesn’t. vox populi runs QLoRA fine-tunes and OpenAI-compatible serving on detected CUDA / Metal / WebGPU — Burn + Candle, no Python. Requires the gpu cargo feature.

→ examples/golden/ · Rosetta comparison · why Vox for AI

Touches you’ll see everywhere

A few language-level decisions show up in almost every snippet:

Phonetic operators. Vox spells comparisons and booleans as words: is, isnt, and, or, not. The bare != form parses, but the lexer emits a diagnostic pointing at isnt. Words appear in language-model training data far more often than punctuation patterns — so a model is more likely to predict the word than the symbol, and a human reads it aloud unambiguously.

fn classify(score: int, override: bool, calibrated: bool) to str {
    if override is true { return "admin" }
    if score >= 90 and score isnt 100 { return "expert" }
    if score < 50 or not calibrated { return "novice" }
    return "regular"
}

Opaque ID types. Id[User] and Id[Post] are distinct types. Passing the wrong-table ID to db.Post.find(user_id) is a compile error, not a 4 AM runtime crash.

? propagation + match exhaustiveness. The ? postfix unwraps Ok(value) or short-circuits the function with the Error. The only way to consume a Result is match, and match arms must cover both Ok and Error — the compiler refuses to build silent error-swallowing code.

Sandboxed execution. Script-shaped files run under the HIR interpreter by default (ADR-048). Isolation is capability denial plus counted bounds (steps, heap, depth, output, disk bytes, file counts), imposed by the receiver via repeatable --caps. vox-bounded-fs caps reads by size; vox-container-types::exec_grammar classifies shell-out risk before execution. Native compile is an explicit hatch (--mode script), not a sandbox.

vox audit runs the rule pack — stub, hollow-fn, victory-claim, AI-laziness, secret, magic-value, deprecated-symbol, and effect-system detectors — each F1-scored against fixture corpora. Rules are calibrated, not vibes.

Engineering invariants

Properties enforced on the project itself, invisible from the language surface:

• Layered crate graph. All 101 workspace crates declare a layer (L0 pure types → L5 surfaces) in layers.toml. vox-arch-check blocks inversions, fan-in violations, LoC budget overruns, and orphaned modules.
• Sandboxed execution. The HIR interpreter is the isolation tier (ADR-048). vox-bounded-fs (size-capped reads), vox-container-types::exec_grammar (shell risk classifier). Caps are repeatable --caps on vox run.
• Declared capabilities. vox-capability-registry gates what tools can do; vox-identity signs with ed25519 against a trust ledger; vox-secrets is the only path to a secret value.

---

Next Steps

• Language Reference — Full syntax and feature reference
• Actors & Workflows — Workflow durability and actor persistence
• Ecosystem & Tooling — CLI commands, package manager, LSP
• Web IR operations catalog — numbered compiler/emitter tasks OP-0001–OP-0320 + supplemental OP-S049–OP-S220 batch map
• Web IR acceptance gates G1–G6 — parser, K-metric, parity, and rollout thresholds
